Sector propagation
Samples a directional beam with FSPL, antenna gain, building intersections, and frequency-dependent cumulative wall loss.
Rays, Rx power, range, gaps
Planning-grade RF documentation
Understand the model. Run the system. Inspect every result.

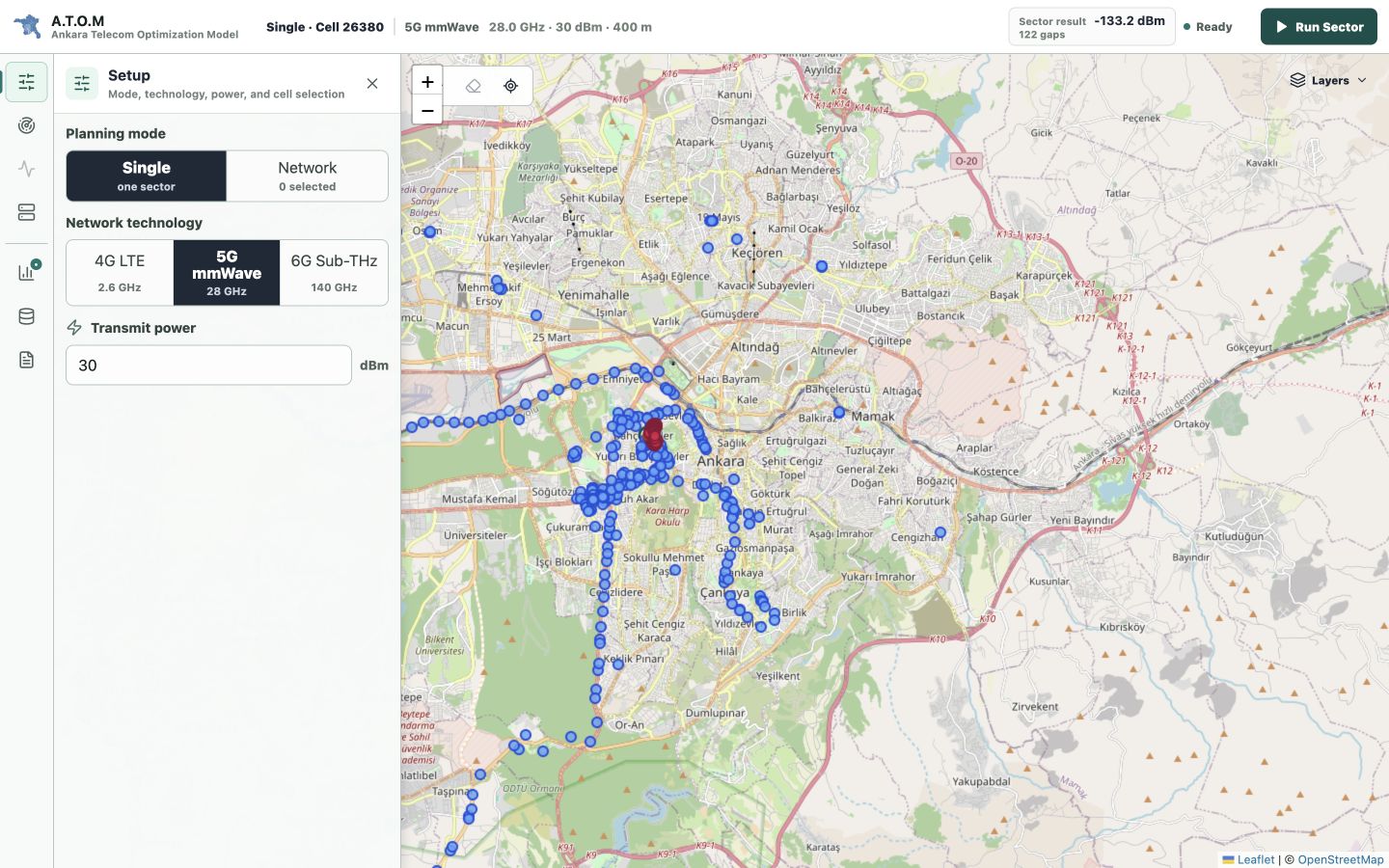

A.T.O.M is a local-first telecom planning workspace for deterministic 4G LTE, 5G mmWave, and 6G Sub-THz propagation analysis across Ankara. These docs explain how the focused workspace, Go RF engines, spatial data, interference model, and optional 5G Core path fit together.
Choose your starting point
The documentation is organized around two questions: how the system works internally, and how to get from a fresh clone to a useful RF planning result.
System design
Trace data from the browser to the RF engines
See component boundaries, request lifecycles, R-tree queries, worker limits, interference calculations, and 5G communication paths.
Open architecture guide → Installation and operationDownload, start, and use the current application
Clone the Git LFS dataset, run Docker Compose, verify readiness, and complete sector, network, interference, and report workflows.
Open download guide →What A.T.O.M evaluates
Each analysis is exposed as a distinct workflow so radio configuration, spatial evidence, and output interpretation remain connected without filling the map with permanent controls.
Demand optimization
Sweeps sector azimuths or selected-cell plans against POI demand, residential-density demand, and an overlap-aware network score.
Before/after score and azimuthsInterference quality
Evaluates serving-cell selection and co-channel interference on an adaptive grid for modeled RSRP, SINR, RSRQ, and RSSI.
Quality surface and demand impact5G communication path
Maps selected 5G cells to gNBs and distinguishes direct Xn coordination, AMF/N2 fallback, and UPF/N3 session traffic.
Routes, functions, sessions, eventsPlanning reports
Combines the active plan, RF evidence, interference assumptions, Core Lab state, comparisons, and map context for review.
Print/PDF and MarkdownOne planning loop
The application keeps the map stable while one focused tool is open. Configuration changes invalidate stale analysis, and only the latest matching request is allowed to update the workspace.
01
Set context
Choose a project, mode, technology, transmit power, and cells.
02
Shape propagation
Set rays, radius, azimuth, and sector beam width.
03
Run analysis
Evaluate a sector, network plan, optimization, or interference surface.
04
Inspect spatially
Select towers, gaps, paths, and radio-quality samples on the map.
05
Compare and export
Save and compare scenarios, validate evidence, then export reproducible reports.
Know the confidence boundary
A.T.O.M is intentionally deterministic and inspectable. Its results support planning, education, and system evaluation; they do not replace calibrated propagation tools or field measurements.
Local computation, explicit inputs
Validated dataset packs are loaded into memory. Projects preserve exact requests, model versions, and dataset identity for repeatable comparisons.
Planning estimate, not a measurement
Fast fading, reflection-heavy multipath, multiple-edge diffraction, MIMO scheduling, vendor antenna diagrams, and uplink interference remain outside the model; the 2.5D path tool is an inspectable planning approximation.
Reference library
Use the focused guides above for orientation, then move into the detailed API, algorithms, deployment, and release history.
REST API referenceEndpoints and contracts
Algorithms and RF physicsEquations and geometry
Capability detailsSupported workflows
Reading propagation mapsVisual interpretation
Production deploymentOperations guide
Dataset Pack StudioBuild arbitrary-region packs
Modeling limitsConfidence boundary
FAQ and troubleshootingCommon questions
Project changelogReleases and updates
Contributor guideDevelopment workflow
